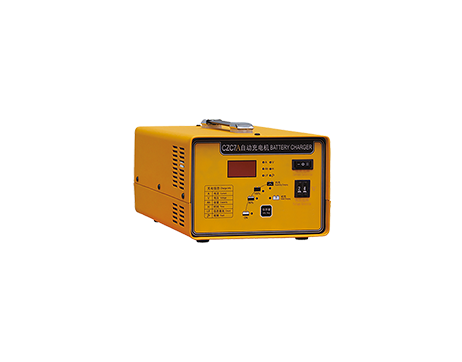

♦ Combine the high frequency switch mode with micro-processor in one unit to reach the best charging effect.
♦ Automatically control charging process according to the program without operator.
♦ Using IWUIa or IWUUa multi-stage charging curve which is suitable for liquid added or free maintance lead acid battery.
♦ Protection function such as open circuit, over load, short circuit and over temperature.
♦ With auto-checking, time-delay start, soft-start functions.
♦ Balance charging function and initial charging function for new or long no-used battery.
♦ Charging voltage and current adjustable.
♦ Memory function to check the last 20times charging history
♦ It have the function of self starting again if the power interrupted.
♦ Apply to electrical pallet, electric lift, electric truck, electric tour car and various kinds of small size electric vehicles with lead acid battery.
♦ Parameters:
| Type(A/V) | Rated input power supply(V) | Rate charging current(A) | Charger input power(KW) | Chargeable battery voltage(V) | Changed battery range(AH) | Size(mm) | Weight(KG) |
| CZC7A-20A/24V |
Single phase 50/60HZ |
7~20 | 0.7 | 12~24 | 50~160 | 200*365*140 | 6.6 |
| CZC7A-30A/24V |
Single phase 50/60HZ |
10~30 | 1.1 | 12~24 | 70~240 | 200*365*140 | 6.6 |
| CZC7A-35A/24V |
Single phase 50/60HZ |
12~35 | 1.3 | 12~24 | 80~280 | 200*365*140 | 6.6 |
| CZC7A-50A/24V |
Single phase 50/60HZ |
17~50 | 1.8 | 12~24 | 120~400 | 220*405*140 | 8.3 |
| CZC7A-30A/36V |
Single phase 50/60HZ |
10~30 | 1.6 | 12~36 | 70~240 | 220*405*140 | 8.3 |
| CZC7A-30A/48V |
Single phase 50/60HZ |
10~30 | 2.2 | 12~48 | 70~240 | 220*405*140 | 8.3 |
