High efficiency & High power density which can reduce energy consumption(save electricity).

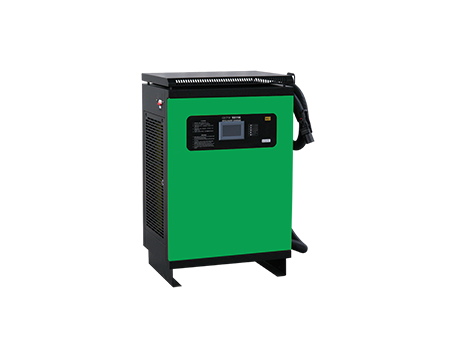

♦ Lithium battery charger, connects several high-performance switching rectifier modules to expand larger charging output current.
♦ Built-in host computer which monitor and control the charging process in real-time.
♦ DSP digital control makes the more stable, reliable and easier to expand.
♦ Allow large voltage fluction, suitable for most of harsh working environment.
♦ Protect function: overload, short circuit, open circuit, reverse connection and so on.The charger will tell you the fault detail.
♦ BMS Communication allowed for good management of batteries.
♦ Memory function to record the charging history.
♦ Parameters:
| Style | CZC7SI-D100v/100A | CZC7SI-D100V/200A | CZC7SI-D100V/300A | CZC7SI-D60V/100A | CZC7SI-D60V/200A | CZC7SI-D60V/400A | CZC7SI-30V/75A | CZC7SI-30V/150A |
| Rated input voltage(V) | Three phase | Three phase | Three phase | Three phase | Three phase | Three phase | Single phase | Single phase |
| Input power(KVA) | 10.6 | 21.3 | 31.9 | 6.4 | 12.8 | 19.1 | 25.5 |
2.5 |
| Max input current(A) | 16.2 | 32.3 | 48.5 | 9.7 | 19.4 | 29.1 | 38.8 |
11.2 |
| Power factor | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 | 0.99 |
0.99 |
| THD | ≤7% | ≤7% | ≤7% | ≤7% | ≤7% | ≤7% | ≤7% |
≤7% |
| Overall efficiency | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 |
0.94 |
| Rated output current(A) | 100 | 200 | 300 | 100 | 200 | 400 | 75 |
75 |
| Max output voltage(V) | 100 | 100 | 100 | 60 | 60 | 60 | 30 |
30 |
| Voltage regulation accuracy | 60-100 | 60-100 | 60-100 | 30-60 | 30-60 | 30-60 | 21-30 |
21-30 |
| Steady flow accuracy | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% |
≤±1% |
| Work condition temperature(℃) | -25℃-45℃ | |||||||
| Szie(mm) | 300*360*600 | 770*550*1026 | 300*360*600 | 770*550*1026 | 300*360*600 | |||
| Weight(KG) | 40 | 130 | 140 | 40 | 130 | 140 | 35 |
38 |
1. High efficiency and power density which can reduce energy consumption in order to save electricity
2. DSP digital control with higher environmental stability, reliability, and easier expansion
3. Low input harmonics which can reduce pollution to power grid
4. Wide input voltage and operating temperature which allows larger voltage fluctuation and harsh working environment
5. Rich error detection function friendly helping maintenance
Multi-functional touch screen allows online parameters setting and processing display
